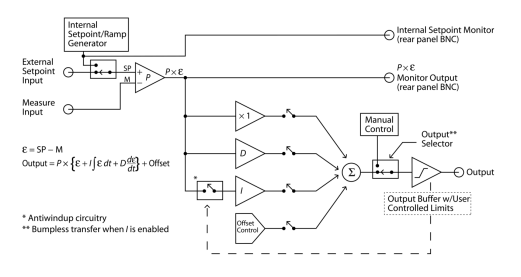

Control type

Analog, PID + Offset

Input range

±10 V Common Mode,

±1 V Differential

Proportional gain

10-1 to 103

Integral gain

10-1 s-1 to 105 s-1

(effective time constant 10-5 s to 10 s)

Derivative gain

10-7 s to 1 s

Offset

±10 V, 1 mV resolution

Bandwidth

100 kHz

Propagation delay

1 μs (typ.)

Noise (typ)

8 nV/√Hz above 10 Hz

(ref. to input)

Parameter control

Digital

Parameter accuracy

1 %

Stability

200 ppm/°C

Setpoint

   External

Front BNC input

   Internal

±10 V range with 1 mV resolution

   Internal setpoint noise

±20 nV/√Hz above 100 Hz

Ramp

Internal setpoint linear ramping from 10-3 to 104 V/s

Amplifier output

±10 V with adjustable upper/lower limits

Display resolution

4 digits

Units

s-1,  s,  V,  V/s

Operating temperature

0 °C to 40 °C

(non-condensing)

Interface

Serial via SIM interface

Connectors

BNC (3 front, 2 rear)

DB15 (male) SIM interface

Power

Power supplied by the SIM900 Mainframe, or optionally by a user-supplied DC power supply (±15 V and +5 V)

Dimensions

3.0" × 3.6" × 7.0" (WHL)

Weight

2.1 lbs.

Warranty

One year parts and labor on defects in materials and workmanship
